goaccess

安装依赖

yum install glib2 glib2-devel GeoIP-devel  ncurses-devel zlib zlib-devel -y
wget https://github.com/maxmind/geoip-api-c/releases/download/v1.6.12/GeoIP-1.6.12.tar.gz
tar -zvxf GeoIP-1.6.12.tar.gz
cd GeoIP-1.6.12
./configure
make && make install

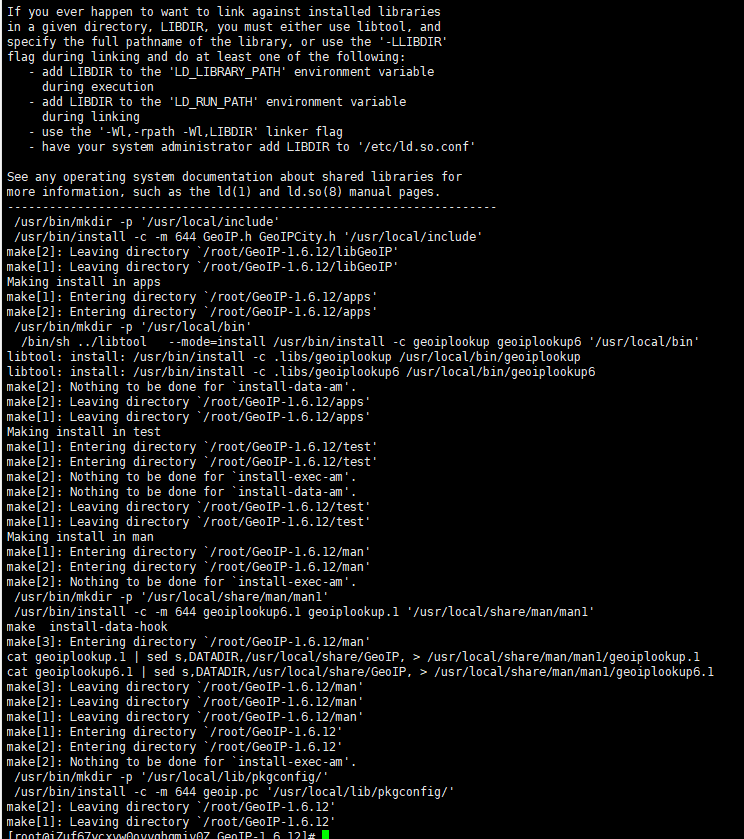

安装后如下图：

安装goaccess

官网看下版本： https://goaccess.io/download

wget https://tar.goaccess.io/goaccess-1.4.tar.gz
tar -xzvf goaccess-1.4.tar.gz
cd goaccess-1.4
./configure --enable-utf8 --enable-geoip=legacy
make && make install

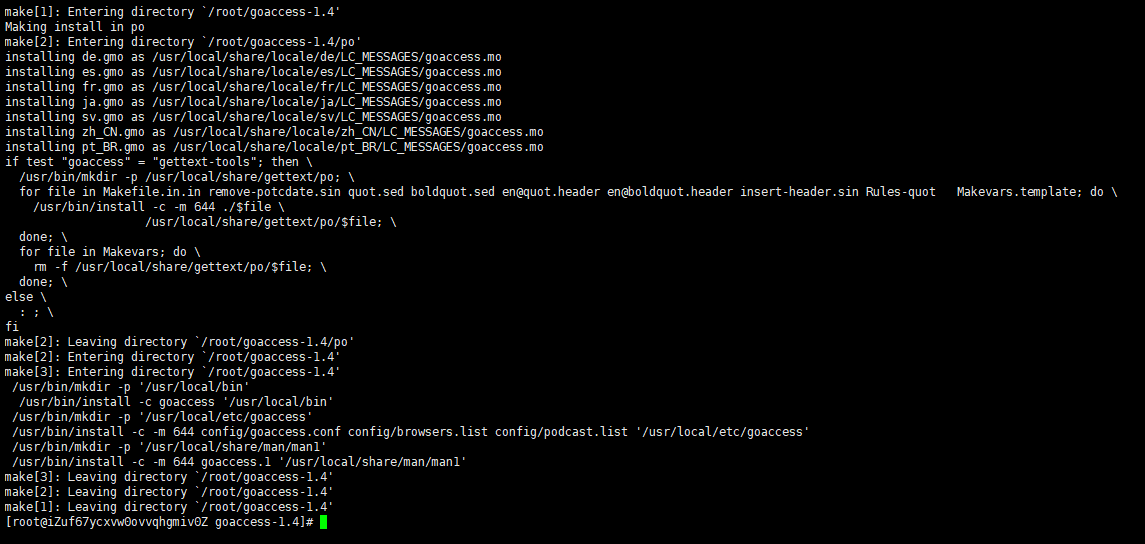

安装完成后如下图：

格式化日志格式

使用 nginx2goaccess.sh 脚本将 nginx 日志格式格式化为 goaccess 能识别的日志格式，脚本内容见附录一
使用如下方式获取日志格式

# log_format 为你 nginx.conf 中配置的日志格式，需要去查看 Nginx配置里面的格式。
sh nginx2goaccess.sh '<log_format>'

#如：
sh nginx2goaccess.sh '$remote_addr - $remote_user [$time_local] "$http_host$request_uri" $status $request_time $body_bytes_sent "$http_referer" "$http_user_agent" "$http_x_forwarded_for"'

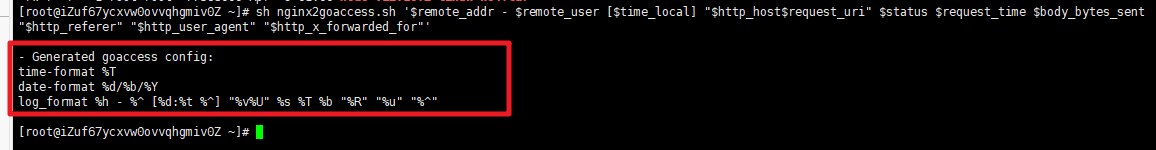

上面命令执行后，会输出一段内容，将内容复制下来，如下图所示
在 config 文件夹中新建一个配置文件

vim /root/goaccess-1.4/config/nginxlog.conf
# 输入上面复制的内容，保存即可

生成统计页面

可以写个脚本定时生成统计页面

# 默认：
cd /root/goaccess-1.4/

./goaccess -f /var/log/nginx/access.log -p /root/goaccess-1.4/config/nginxlog.conf -o /usr/share/nginx/html/goaccess/report.html

# 生成中文统计页面
cd /root/goaccess-1.4/

LANG="zh_CN.UTF-8" bash -c "./goaccess -f /var/log/nginx/access.log -p /root/goaccess-1.4/config/nginxlog.conf -o /usr/share/nginx/html/goaccess/report.html"

访问 URL ：http://106.15.238.9/goaccess/report.html

注： -f nginx 记录的日志文件 -p 指定日志格式文件，也就是那个配置文件 -o 输出到指定html文件 --real-time-html 实时刷新 --ws-url 绑定一个域名

附录一 `nginx2goaccess.sh` 脚本内容

#!/bin/bash
#
# Convert from this:
#   http://nginx.org/en/docs/http/ngx_http_log_module.html
# To this:
#   https://goaccess.io/man
#
# Conversion table:
#   $time_local         %d:%t %^
#   $host               %v
#   $http_host          %v
#   $remote_addr        %h
#   $request_time       %T
#   $request_method     %m
#   $request_uri        %U
#   $server_protocol    %H
#   $request            %r
#   $status             %s
#   $body_bytes_sent    %b
#   $bytes_sent         %b
#   $http_referer       %R
#   $http_user_agent    %u
#
# Samples:
#
# log_format combined '$remote_addr - $remote_user [$time_local] '
# '"$request" $status $body_bytes_sent '
# '"$http_referer" "$http_user_agent"';
#   ./nginx2goaccess.sh '$remote_addr - $remote_user [$time_local] "$request" $status $body_bytes_sent "$http_referer" "$http_user_agent"'
#
# log_format compression '$remote_addr - $remote_user [$time_local] '
# '"$request" $status $bytes_sent '
# '"$http_referer" "$http_user_agent" "$gzip_ratio"';
#   ./nginx2goaccess.sh '$remote_addr - $remote_user [$time_local] "$request" $status $bytes_sent "$http_referer" "$http_user_agent" "$gzip_ratio"'
#
# log_format main
# '$remote_addr\t$time_local\t$host\t$request\t$http_referer\t$http_x_mobile_group\t'
# 'Local:\t$status\t$body_bytes_sent\t$request_time\t'
# 'Proxy:\t$upstream_cache_status\t$upstream_status\t$upstream_response_length\t$upstream_response_time\t'
# 'Agent:\t$http_user_agent\t'
# 'Fwd:\t$http_x_forwarded_for';
#   ./nginx2goaccess.sh '$remote_addr\t$time_local\t$host\t$request\t$http_referer\t$http_x_mobile_group\tLocal:\t$status\t$body_bytes_sent\t$request_time\tProxy:\t$upstream_cache_status\t$upstream_status\t$upstream_response_length\t$upstream_response_time\tAgent:\t$http_user_agent\tFwd:\t$http_x_forwarded_for'
#
# log_format main
# '${time_local}\t${remote_addr}\t${host}\t${request_method}\t${request_uri}\t${server_protocol}\t'
# '${http_referer}\t${http_x_mobile_group}\t'
# 'Local:\t${status}\t*${connection}\t${body_bytes_sent}\t${request_time}\t'
# 'Proxy:\t${upstream_status}\t${upstream_cache_status}\t'
# '${upstream_response_length}\t${upstream_response_time}\t${uri}${log_args}\t'
# 'Agent:\t${http_user_agent}\t'
# 'Fwd:\t${http_x_forwarded_for}';
#   ./nginx2goaccess.sh '${time_local}\t${remote_addr}\t${host}\t${request_method}\t${request_uri}\t${server_protocol}\t${http_referer}\t${http_x_mobile_group}\tLocal:\t${status}\t*${connection}\t${body_bytes_sent}\t${request_time}\tProxy:\t${upstream_status}\t${upstream_cache_status}\t${upstream_response_length}\t${upstream_response_time}\t${uri}${log_args}\tAgent:\t${http_user_agent}\tFwd:\t${http_x_forwarded_for}'
#
# Author: Rogério Carvalho Schneider <stockrt@gmail.com>

# Params
log_format="$1"

# Usage
if [[ -z "$log_format" ]]; then
    echo "Usage: $0 '<log_format>'"
    exit 1
fi

# Variables map
conversion_table="time_local,%d:%t_%^
host,%v
http_host,%v
remote_addr,%h
request_time,%T
request_method,%m
request_uri,%U
server_protocol,%H
request,%r
status,%s
body_bytes_sent,%b
bytes_sent,%b
http_referer,%R
http_user_agent,%u"

# Conversion
for item in $conversion_table; do
    nginx_var=${item%%,*}
    goaccess_var=${item##*,}
    goaccess_var=${goaccess_var//_/ }
    log_format=${log_format//\$\{$nginx_var\}/$goaccess_var}
    log_format=${log_format//\$$nginx_var/$goaccess_var}
done
log_format=$(echo "$log_format" | sed 's/${[a-z_]*}/%^/g')
log_format=$(echo "$log_format" | sed 's/$[a-z_]*/%^/g')

# Config output
echo "
- Generated goaccess config:
time-format %T
date-format %d/%b/%Y
log_format $log_format
"

# EOF
